SPINE
|
Tired of seeing the same
old cervical plate? Take a look at the Verteview by Atlas Spine.
This unique design allows you to clearly see your graft. This load sharing
plate not only provides you with superior visibility, but it has a confirmed
locking system.
|
| Plate Lengths: |
Standard Screws |
Rescue Screws |
| 1 Level 22-32mm (2mm increments) |
4.2mm X 12mm (Green) |
4.6mm X 12mm (Green/Gray) |
| 2 Level 36-54mm (2mm increments) |
4.2mm X 14mm (Blue) |
4.6mm X 14mm (Blue/Gray) |
| 3 Level 51-72mm (3mm increments) |
4.2mm X 16mm (Magenta) |
4.6mm X 16mm (Magenta/Gray) |
| 4 Level 68-92mm (3mm increments)
|
|
|
|

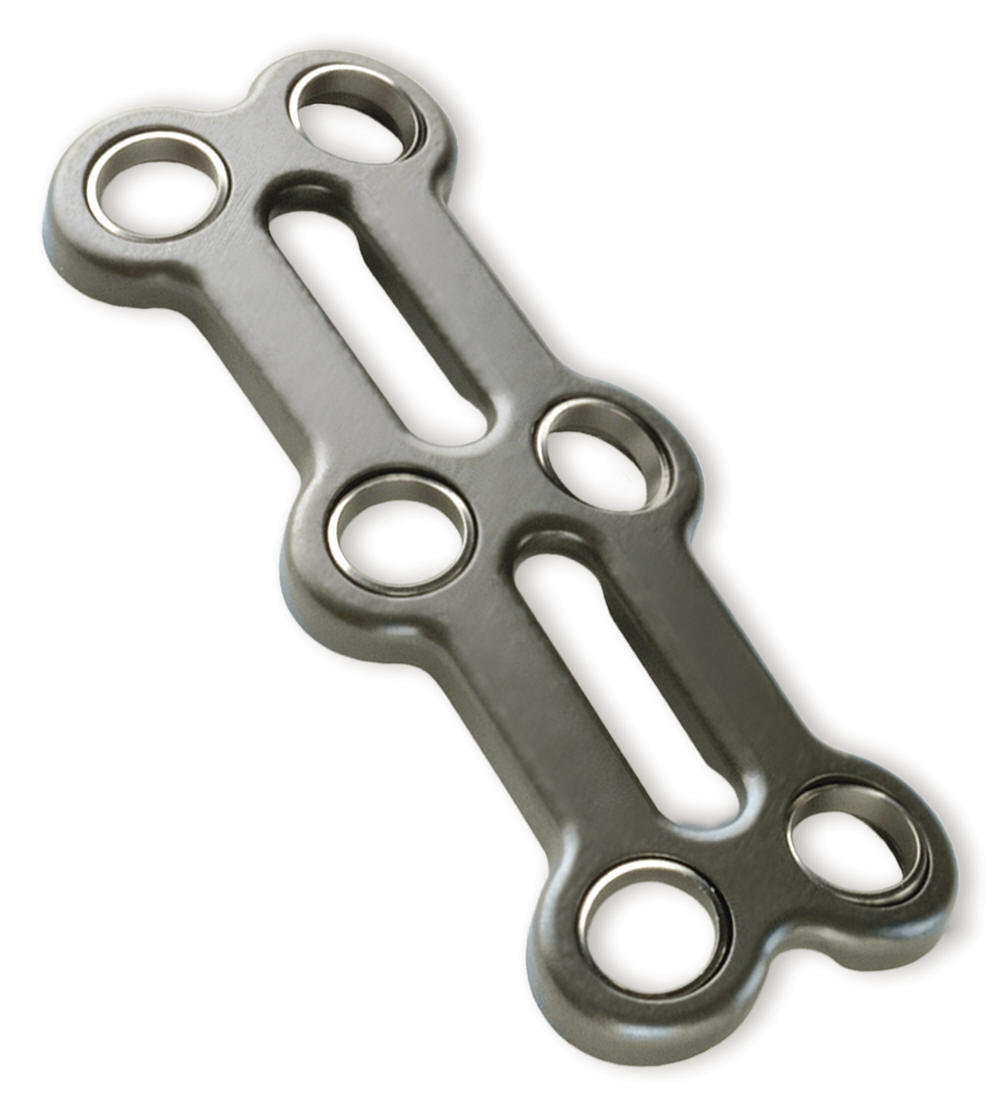

Want a more conventional cervical
plate? You got to see the Envision²
from Ortho Development. This thin (2mm) and narrow (16mm) plate was
designed to minimize tissue irritation and accommodate the patients anatomy.
This load sharing plate is pre-contoured, eliminating the need for plate
bending. The patented one-step locking mechanism helps prevent screw
back-out without extra steps or components. Self-drilling screws are standard.
|
| Plate Lengths |
Self Drilling Screws |
Rescue Screws |
| 1 Level 22-32mm (2mm increments) |
4.0 X 12mm (light green) |
4.35 X 12mm (dark green) |
| 2 Level 34-40mm(2mm increments) |
4.0 X 14 mm (light blue) |
4.35 X 14mm (dark blue) |
| 2 Level 43-55mm (3mm increments) |
4.0 X 16 mm (light magenta) |
4.35 X 16mm (dark magenta) |
| 3 Level 54-75mm (3mm increments) |
|
|
| 4 Level 68-103 (5mm increments) |
|
|

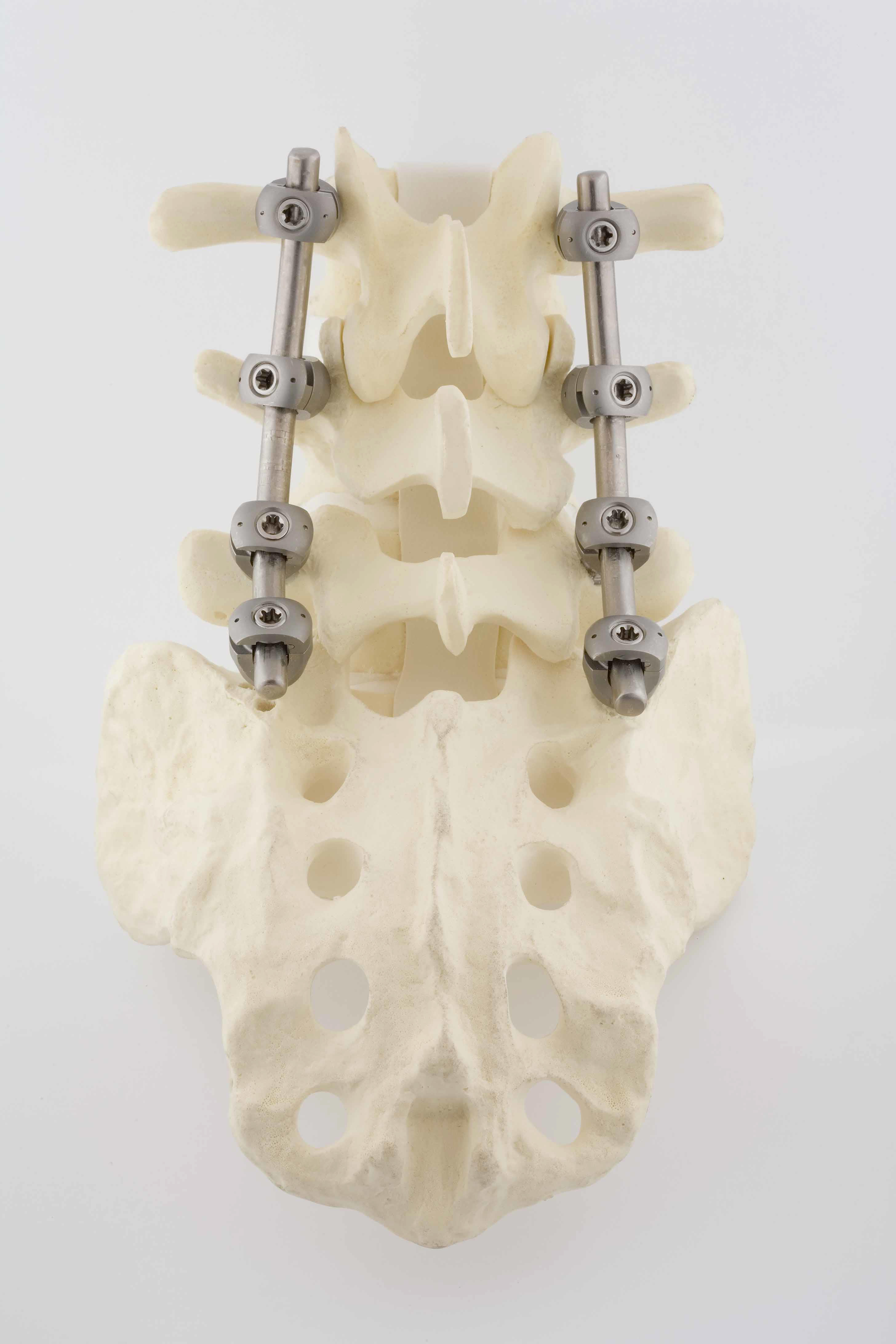

The I.S.S. (Integrated Spine System)
 *
Polyaxial screw design that is more versatile to rod placement and secure
fixation
* Pre-bent rods to help reduce the need for
intraoperative contouring
* Low-profile design to increase strength and
provide a sleeker fit
* Minimal components necessary to complete
implantation
|
